Featrues

No burning,continously working,easy to clean, low cost formaintenance, Reliable Material, Strong pressure resistance.

Application scope

High Viscosity Products.Fiber Products，Pulps，High Acid contendproducts.

Working Principle

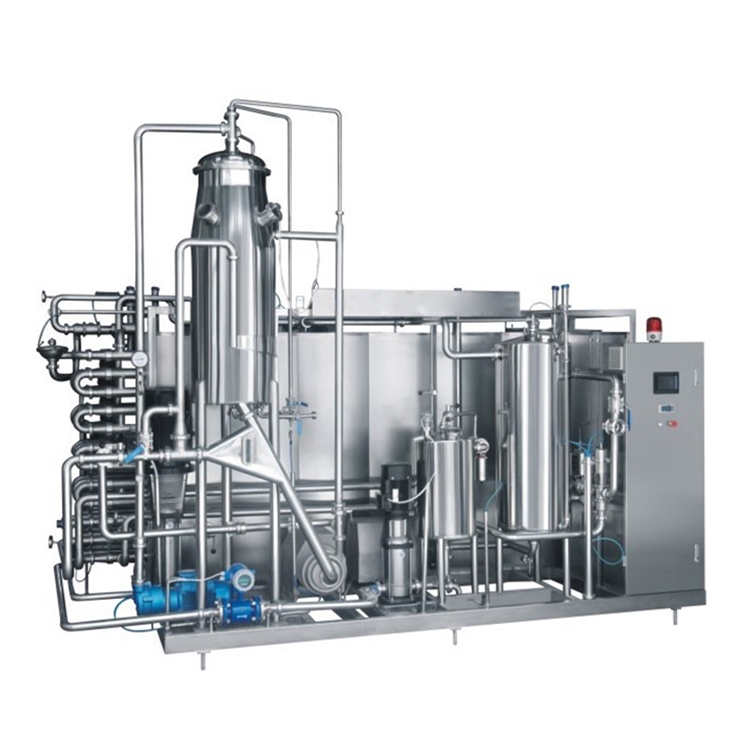

The TG piped-type ultrahigh temperature heat exchanger will sendmaterial from balance slot via pump to heat exchanger.First it warmedupto homogeneous temperature and proceeds homogeneou sprocess.Then it heats up 85-90℃ to stabilize lactoprotein. Then it heats up to120-140℃ to proceed high temperature or ultrahigh temperature forsterilization. At last, it colls to filling temperature 20℃ ot 5℃ and fills.The whole processis done in closed environment. Frequency conversionand timing facilities can be added to the system to adapt to differentpacking speed.CIP can be added to the system. It is also feasible toapply central CIP to system. Electric control system of equipment adoptswhole journey auto program control(from cleaning equipment, disinfection,to heat treatment of material).10 colorful touch screen is set upon electriccontrol cabinet.It Monitors work conditions of whole-set equipmentcontinuously. When deviation happens,it will send instructions.Then PLCcontrol system will control and adjust to ensure equipment work efficiently.
